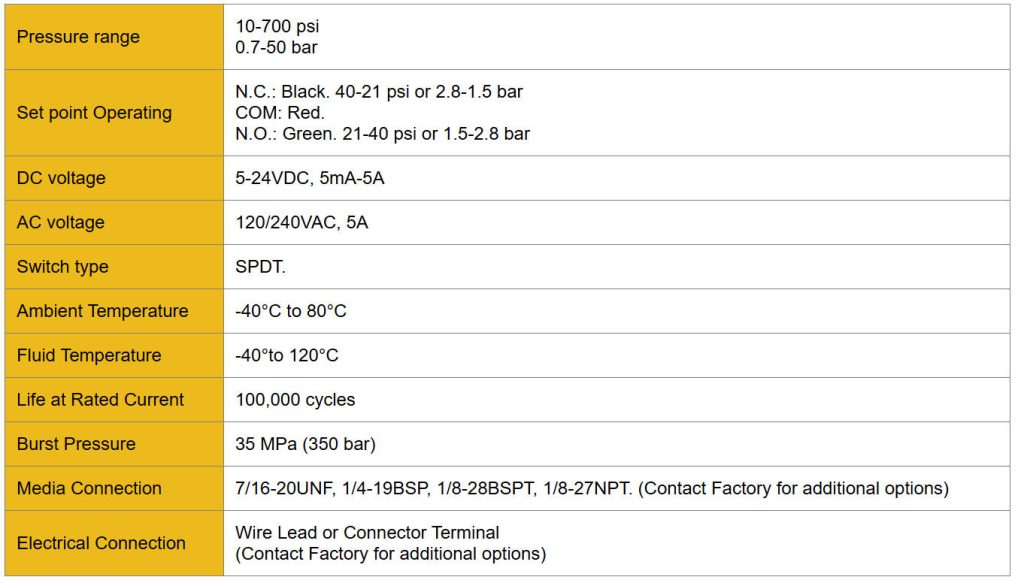

Product Parameters
|
Pressure range |
10-700 psi 0.7-50 bar |
|
Set point Operating |
N.C.: Black. 40-21 psi or 2.8-1.5 bar COM: Red. N.O.: Green. 21-40 psi or 1.5-2.8 bar |
|
DC voltage |
5-24VDC, 5mA-5A |
|
AC voltage |
120/240VAC, 5A |
|
Switch type |
SPDT. |
|
Ambient Temperature |
-40°C to 80°C |
|
Fluid Temperature |
-40°to 120°C |
|
Life at Rated Current |
100,000 cycles |
|
Burst Pressure |
35 MPa (350 bar) |
|
Media Connection |
7/16-20UNF, 1/4-19BSP, 1/8-28BSPT, 1/8-27NPT. (Contact Factory for additional options) |
|
Electrical Connection |
Wire Lead or Connector Terminal (Contact Factory for additional options) |
|
Pressure range |
10-700 psi 0.7-50 bar |
|
Set point Operating |
N.C.: Black. 40-21 psi or 2.8-1.5 bar COM: Red. N.O.: Green. 21-40 psi or 1.5-2.8 bar |
|
DC voltage |
5-24VDC, 5mA-5A |
|
AC voltage |
120/240VAC, 5A |
|
Switch type |
SPDT. |
|
Ambient Temperature |
-40°C to 80°C |
|
Fluid Temperature |
-40°to 120°C |
|
Life at Rated Current |
100,000 cycles |
|
Burst Pressure |
35 MPa (350 bar) |
|
Media Connection |
7/16-20UNF, 1/4-19BSP, 1/8-28BSPT, 1/8-27NPT. (Contact Factory for additional options) |
|
Electrical Connection |
Wire Lead or Connector Terminal (Contact Factory for additional options) |
