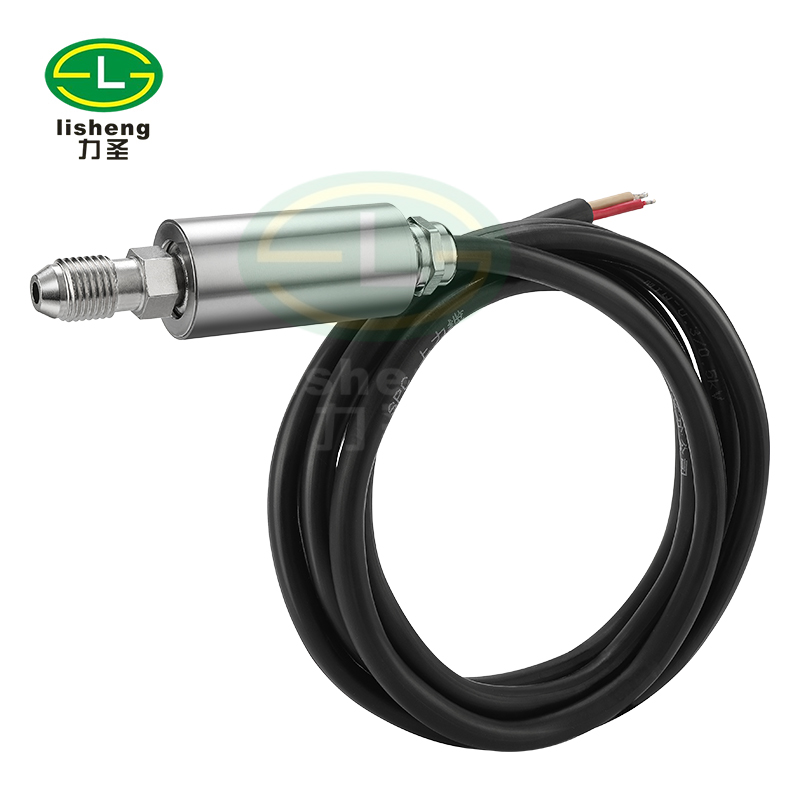

Oil Pressure Switch Use for gas under the coal mine, coal dust explosion environment, smelt, Building materials, foods, steel, etc. at any other industry.
Product Features:
- Select stainless steel action diaphragm. Riveted pressure switch.
- Three different types of contact you can choose: normally open (NO), normally closed (NC) and single pole double throw.
- High reliability, automatic reset.
- Fully Enclosed Structural(Use for welding stainless steel, Fill of Resin).
- Compact size, preservative free.
| TECHNICAL DATA: | |||
| Product Type | Oil Pressure Switch | Electrical Ratings | 5mA-5A@110-250AVC, 5A@6-36VDC |
| Contact Type | N.C.( normally close) N.O.( normally open)
Single Pole Double Throw |
Ambient Temperature | -10°C—+40°C |
| Medium | Oil and water | Medium Temperature | -10°C—+40°C |
| Pressure
Range |
0-10 Mpa | Contact Material | Steel 304 or 306 |
| Thread dimensions：G1/8-28, G1/4-19, 1/8-28BSPT, 1/4-19BSPT, 1/8-27NPT, 1/4-18NPT, 1/4-19BSPT,1/8-27NPT, 1/4-18NPT, M12*1.5, M14*1.5, etc. | |||
