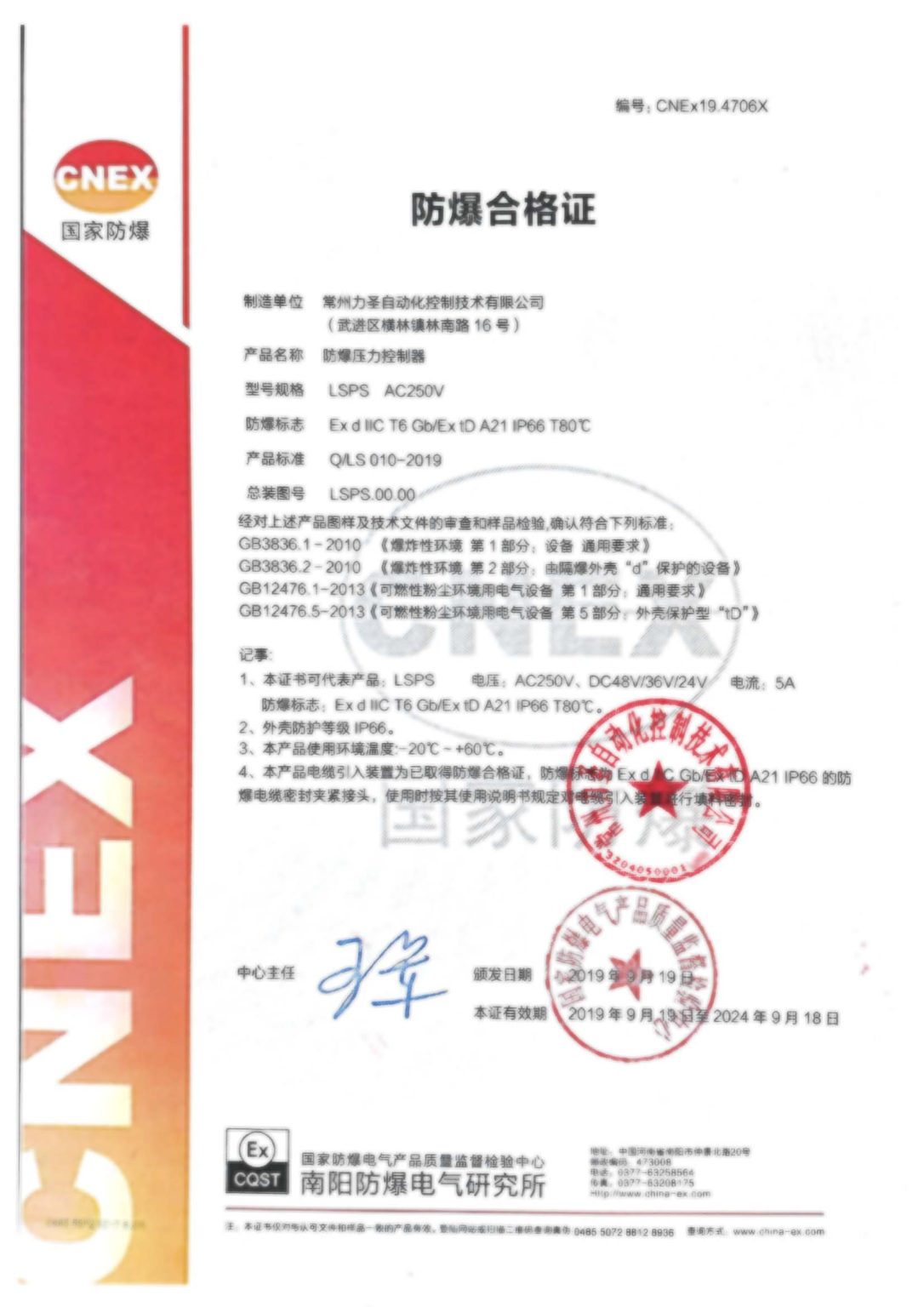

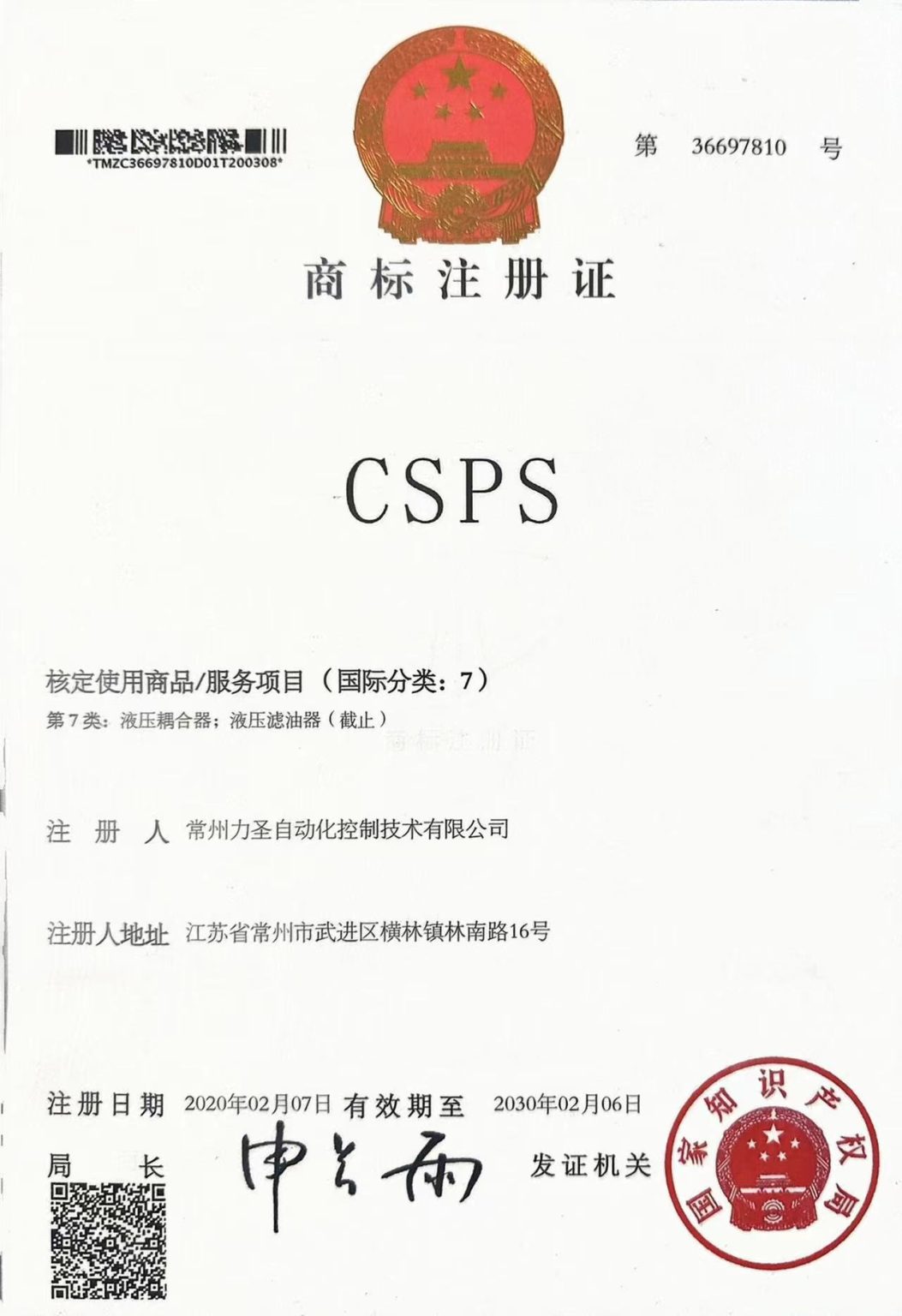

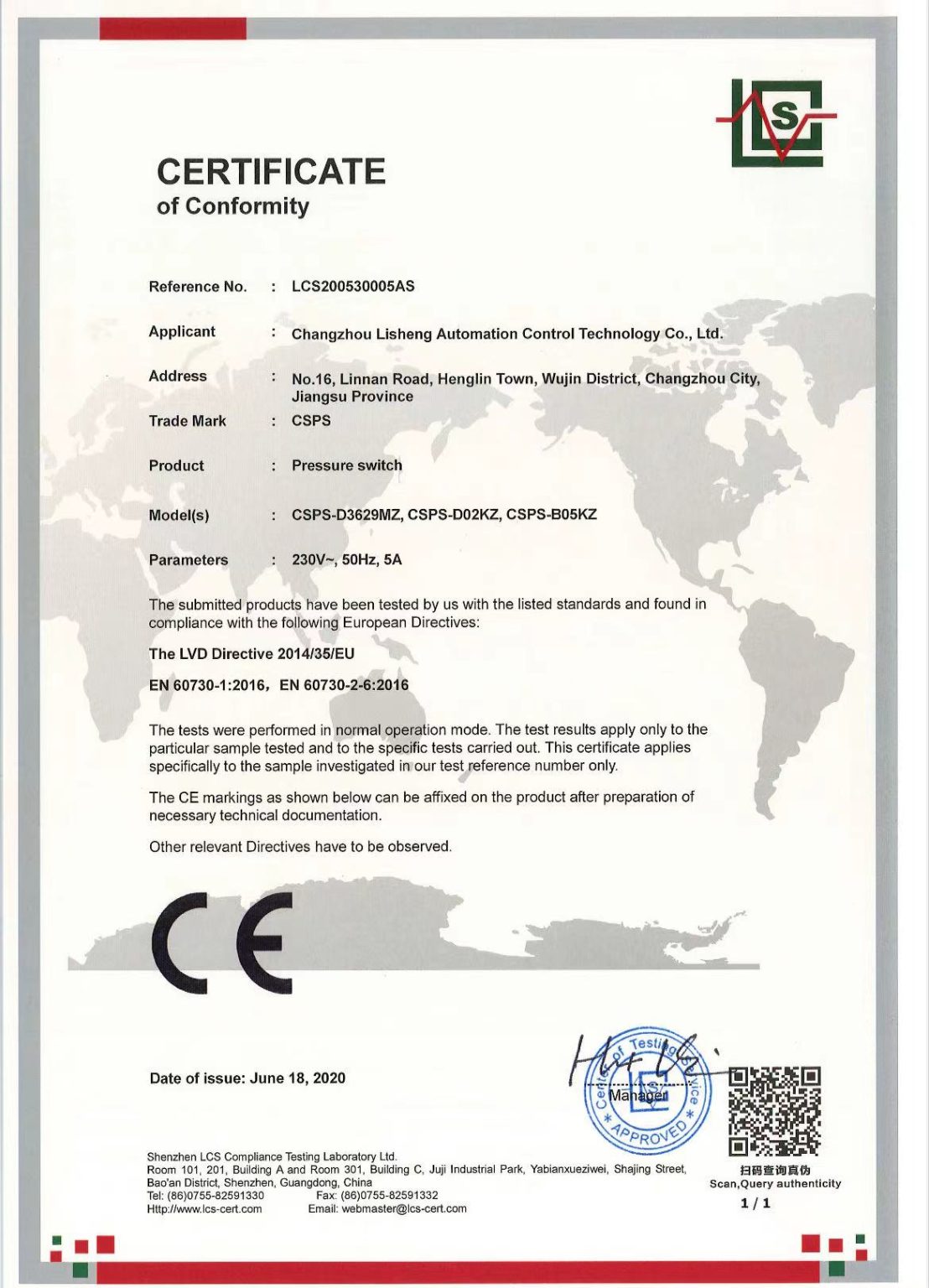

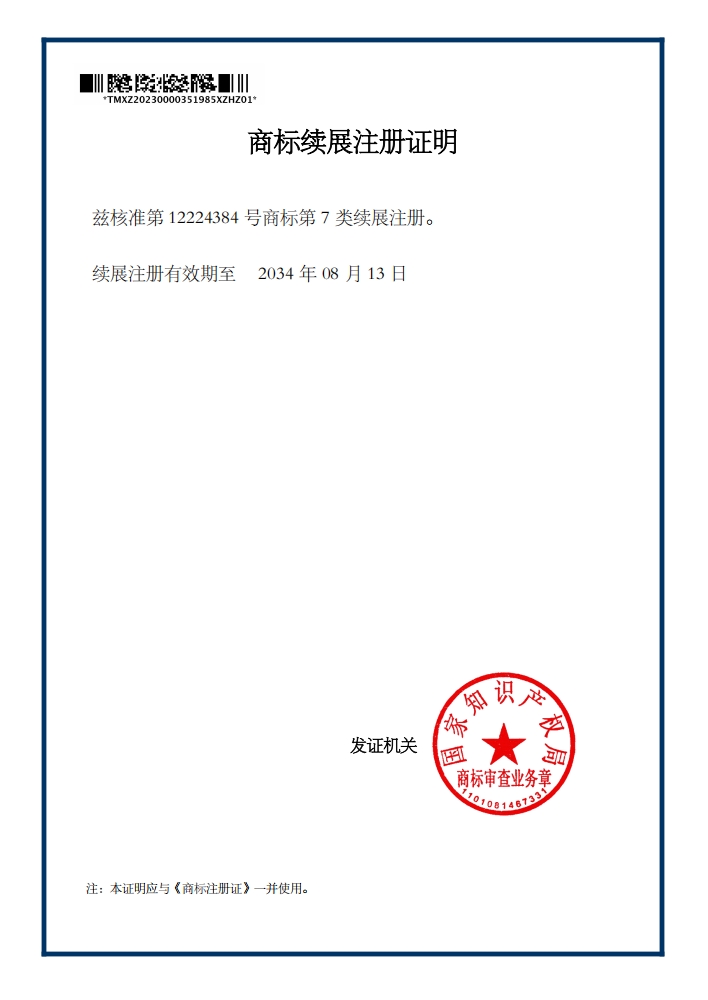

Our Certificate Showcase
Lisheng is your trusted and preferred partner for today’s and tomorrow’s industrial challenges.
O U R S E R V I C E
PRODUCT DESCRIPTION
CSPS series pressure switch is an automatic control switch that receives pressure signals and converts them into electrical signals to achieve on or off. When the system pressure is higher than the action setting, the built-in metal diaphragm flips instantly, driving the electrical contacts to connect and disconnect. When the system pressure drops to the reset setting, the metal diaphragm will automatically flip over again and return to its initial state.
The switch automatically controls the pressure to ensure that the system is always in a safe working range.
The advantages are compact structure, sensitive movement, precise stability, and long cycle life. It is widely used in many industries.
STANDAND PRESSURE RANGE
TECHNICAL DATA
PURPOSE
APPLICATION

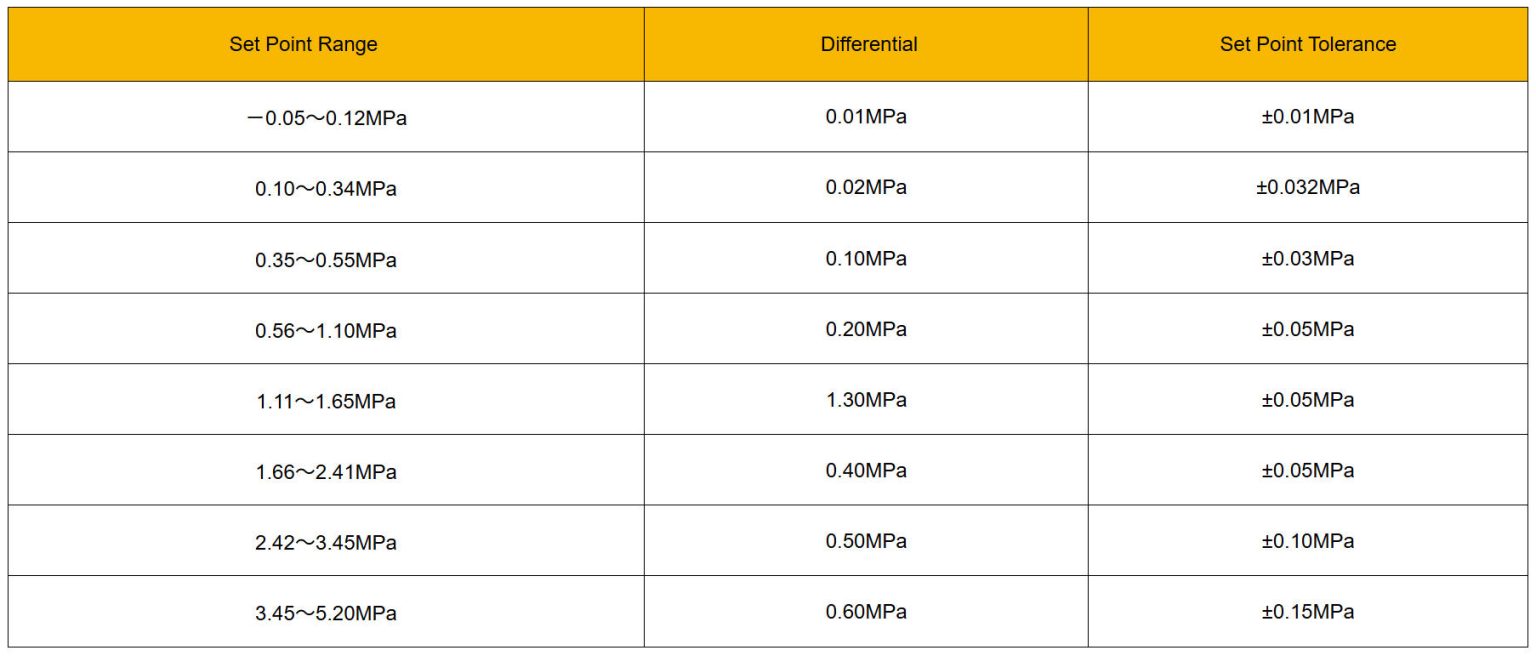

1.Standard Pressure Range：
Differential=Cut-Out Pressure – Cut-in Pressure
1 MPa = 145 PSi = 10 Bar
2. Technical Data：
Current Rating：5—-36vDC (5A ～500mA) 125—-240vAC (6A–15A)
Set Point Range：－0.05—-5.2MPa (760PSi or 52Bar) Max. To 15MPa
Operating Mode：manual reset or automatic reset.

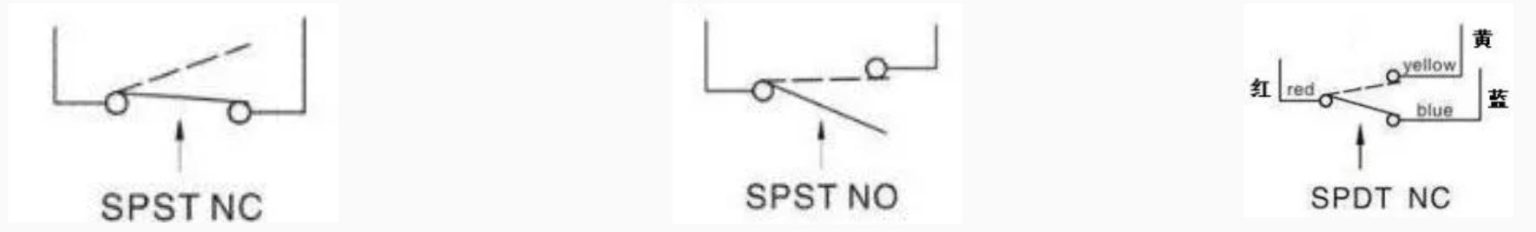

Circuit Form：SPST-ON,SPST-NC,SPST,SPDTUnder atmospheric pressure, the contacts have three modes as N.O. , N.C. and the N.O. and N.C. will be switched automatically.）
As Shown Blow:
Measuring Medium：Gas, Liquid。
Fluid Temperature：－40℃～135℃
Ambient Temperature：－20℃～120℃
Appearance and Structure：Stainless steel diaphragm, Fully enclosed (all stainless steel welding, epoxy resin encapsulation, advantages: corrosion-resistant, maintenance-free, shock-resistant, not affected by oil, dust and humid environment)
Packaging Method: sealed
Life at Rated Current：Max at 0.1 million times
Connect Mode：1. Electrical Connection：Wire Lead, Insert or Weather Pack
Media Connection：G¼”-19 G⅛”-28 ⅜”-24UNF 7/16-20UNF ¼”-18NPT ⅛”-27NPT ⅛”-28ZG ¼”-19ZG M10×1
Threaded connection, copper tube（φ6×1), capillary connection, Air pipe connection, There are various connection methods can be selected by user requirements
3. Purpose:
4. Application:
A. Air pressure, hydraulic pressure and oil pressure control system, also air compressor, hydraulic press, fire extinguishing device system, high and low pressure of air conditioning safety system.
B. Pneumatic and oil pressure control of construction machinery.
C. Pneumatic and oil pressure control of agricultural machinery.
4. Household appliances and many other industries and business applications.
