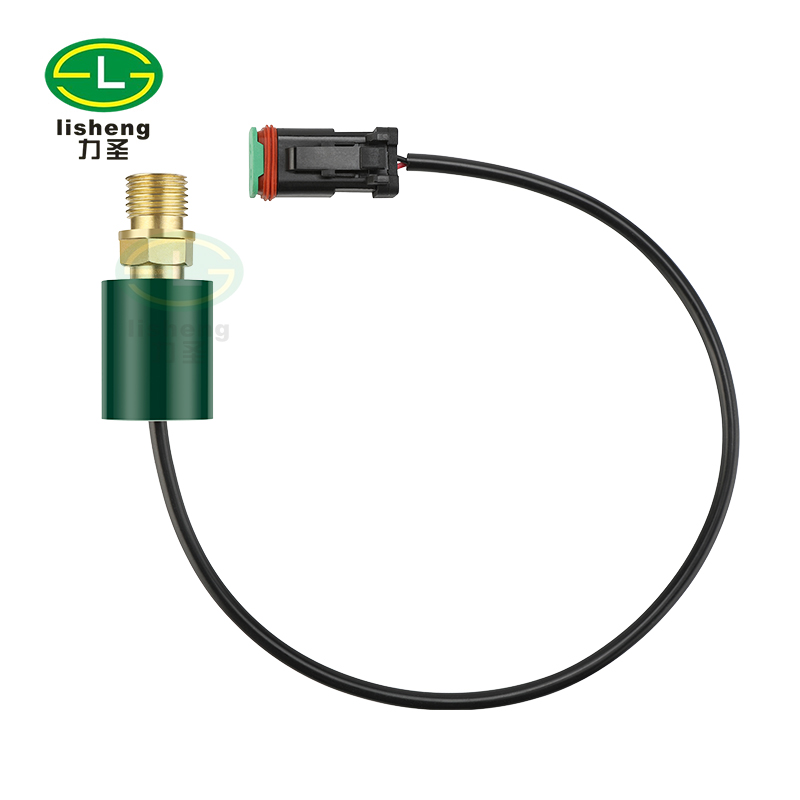

Oil pressure, hydraulic switch

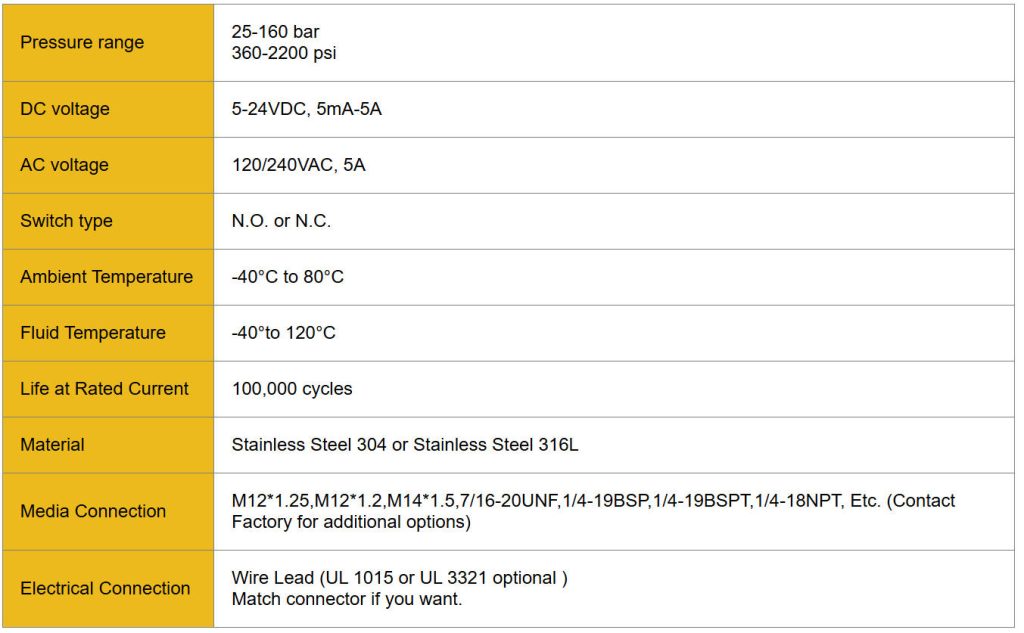

Product Parameters

Pressure range	25-160 bar 360-2200 psi
DC voltage	5-24VDC, 5mA-5A
AC voltage	120/240VAC, 5A
Switch type	N.O. or N.C.
Ambient Temperature	-40°C to 80°C
Fluid Temperature	-40°to 120°C
Life at Rated Current	100,000 cycles
Material	Stainless Steel 304 or Stainless Steel 316L
Media Connection	M121.25,M121.2,M14*1.5,7/16-20UNF,1/4-19BSP,1/4-19BSPT,1/4-18NPT, Etc. (Contact Factory for additional options)
Electrical Connection	Wire Lead (UL 1015 or UL 3321 optional ) Match connector if you want.

Pressure range	25-160 bar 360-2200 psi
DC voltage	5-24VDC, 5mA-5A
AC voltage	120/240VAC, 5A
Switch type	N.O. or N.C.
Ambient Temperature	-40°C to 80°C
Fluid Temperature	-40°to 120°C
Life at Rated Current	100,000 cycles
Material	Stainless Steel 304 or Stainless Steel 316L
Media Connection	M121.25,M121.2,M14*1.5,7/16-20UNF,1/4-19BSP,1/4-19BSPT,1/4-18NPT, Etc. (Contact Factory for additional options)
Electrical Connection	Wire Lead (UL 1015 or UL 3321 optional ) Match connector if you want.
