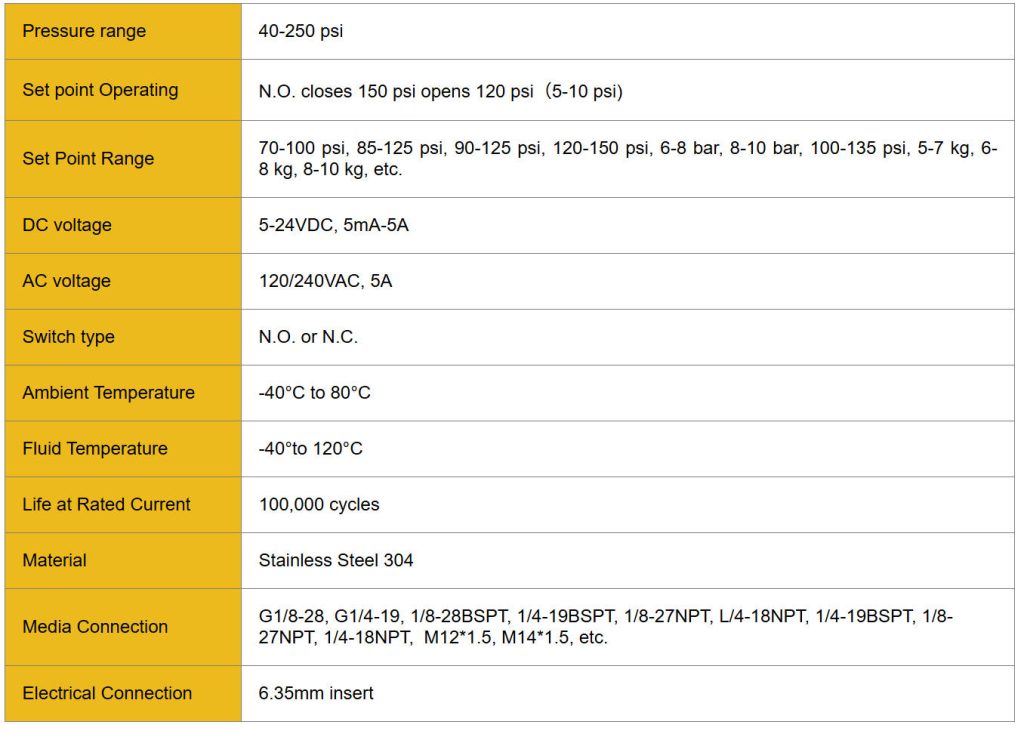

Product Parameters
|
Pressure range |
40-250 psi |
|
Set point Operating |
N.O. closes 150 psi opens 120 psi（5-10 psi) |
|
Set Point Range |
70-100 psi, 85-125 psi, 90-125 psi, 120-150 psi, 6-8 bar, 8-10 bar, 100-135 psi, 5-7 kg, 6-8 kg, 8-10 kg, etc. |
|
DC voltage |
5-24VDC, 5mA-5A |
|
AC voltage |
120/240VAC, 5A |
|
Switch type |
N.O. or N.C. |
|
Ambient Temperature |
-40°C to 80°C |
|
Fluid Temperature |
-40°to 120°C |
|
Life at Rated Current |
100,000 cycles |
|
Material |
Stainless Steel 304 |
|
Media Connection |
G1/8-28, G1/4-19, 1/8-28BSPT, 1/4-19BSPT, 1/8-27NPT, L/4-18NPT, 1/4-19BSPT, 1/8-27NPT, 1/4-18NPT, M12*1.5, M14*1.5, etc. |
|
Electrical Connection |
6.35mm insert |
|
Pressure range |
40-250 psi |
|
Set point Operating |
N.O. closes 150 psi opens 120 psi（5-10 psi) |
|
Set Point Range |
70-100 psi, 85-125 psi, 90-125 psi, 120-150 psi, 6-8 bar, 8-10 bar, 100-135 psi, 5-7 kg, 6-8 kg, 8-10 kg, etc. |
|
DC voltage |
5-24VDC, 5mA-5A |
|
AC voltage |
120/240VAC, 5A |
|
Switch type |
N.O. or N.C. |
|
Ambient Temperature |
-40°C to 80°C |
|
Fluid Temperature |
-40°to 120°C |
|
Life at Rated Current |
100,000 cycles |
|
Material |
Stainless Steel 304 |
|
Media Connection |
G1/8-28, G1/4-19, 1/8-28BSPT, 1/4-19BSPT, 1/8-27NPT, L/4-18NPT, 1/4-19BSPT, 1/8-27NPT, 1/4-18NPT, M12*1.5, M14*1.5, etc. |
|
Electrical Connection |
6.35mm insert |
